52 14 040 Removing and installing/replacing outer cover on left or right front seat

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, move seat fully forwards and upwards.

Remove trim:

Unclip at rear towards top side
Pull on belt opening to one side
Bend trim open slightly at top and bottom on actuating unit
Bend open slightly at top and bottom and pull outwards a little

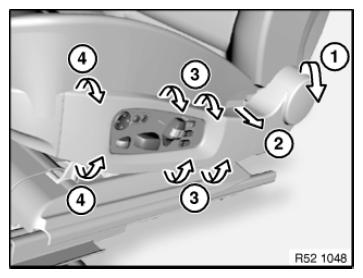

Fig 1: Removing Trim
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining clips must not be damaged.

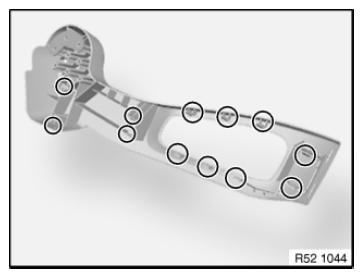

Fig 2: Identifying Damages On Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
