52 14 017 Removing and installing/replacing seat frame for driver's seat

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVER'S SEAT .
Remove seat fabric.
See appropriate seat:
Remove BACKREST FRAME on front seat.

Release all clips.

Installation:

If necessary, replace faulty clips.

Feed wiring harness (1) out of seat frame.

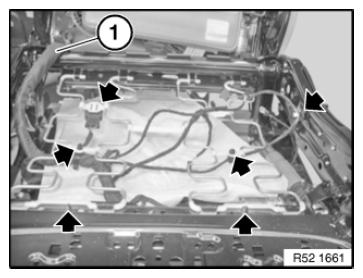

Fig 1: Locating Seat Frame Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Open rivets (1) on left and right.

Remove securing strips (2) on left and right.

Release screws (3).

Tightening torque 52 10 6AZ .

Remove seat frame from seat rail.

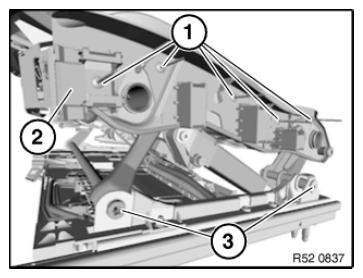

Fig 2: Identifying Seat Frame Rivets, Strips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The new seat frame part contains all the drives.
