Replacement only

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

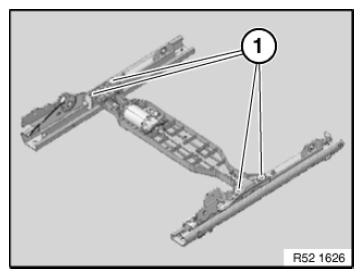

Fig 1: Identifying Carrier Plate Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach left or right seat rail from flex-shaft.

Detach motor retaining plate with drive and flex-shaft from opposite seat rail.

Fig 2: Removing Left/Right Seat Rail From Flex-Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

PTFE hoses are shrink-fitted onto end pieces.

Check that hoses are free from damage.

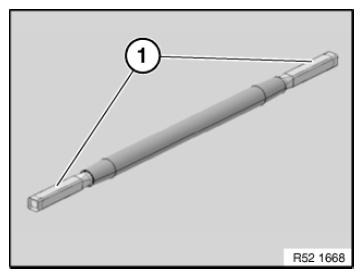

Fig 3: Identifying PTFE Hoses End Pieces

Courtesy of BMW OF NORTH AMERICA, INC.
