52 14 010 Removing and installing/replacing both seat rails on left or right front seat: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVER'S SEAT or PASSENGER SEAT .
Remove lower strap (belt tensioner). See BELT TENSIONER, FRONT PASSENGER SEAT or BELT TENSIONER, DRIVER'S SEAT .
Remove TRIMS FOR TOP RAIL

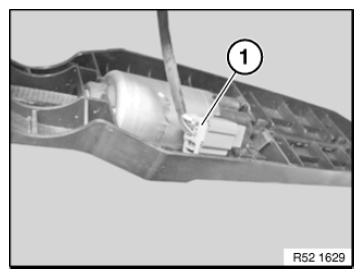

Unlock and disconnect plug connection (1) on drive for longitudinal seat adjustment.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

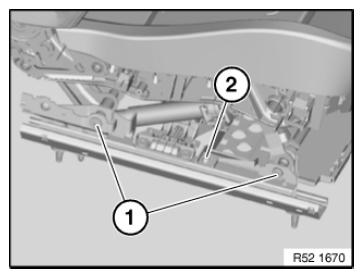

Release left and right screws (1).

Tightening torque 52 10 06AZ .

Release nuts (2) on left and right on carrier plate.

Remove seat rails with motor carrier plate.

Fig 2: Identifying Carrier Plate Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
