52 17 035 Removing and installing/replacing gearing for head restraint adjustment

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SHAFT FOR BACKREST HEAD ADJUSTMENT

Release screws (4) on left and right.

Tightening torque 52 10 10AZ .

Remove retainer (1) on left and right.

Remove gearing (2) on left and right straight towards front.

Installation:

To ensure identical adjustment of gearings (2), carry out following work step on both gearings:

Twist out component (3) until threaded rods (5) are of equal length.

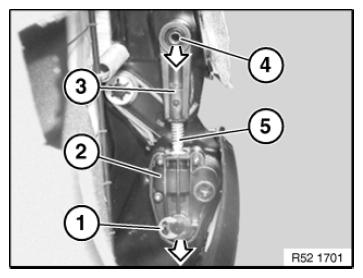

Fig 1: Removing Shaft For Backrest Head Adjustment
Courtesy of BMW OF NORTH AMERICA, INC.
