52 17 026 Removing and installing/replacing pressure distributor for active seat

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SEAT COVER WITH UPHOLSTERY FOR DRIVER'S SEAT

Unscrew left and right nuts (1).

Remove carrier plate towards front from seat mechanism.

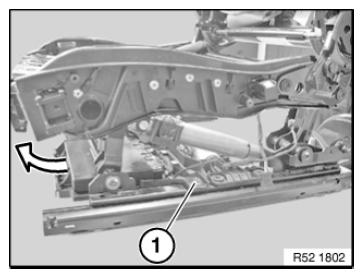

Fig 1: Removing Carrier Plate Towards Front From Seat Mechanism

G08509212

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pressure distributor and pneumatic pockets form a single unit and can only be replaced as a single component.

Unlock plug connection (1) on drive and disconnect.

Unlock plug connection (2) on control unit and disconnect.

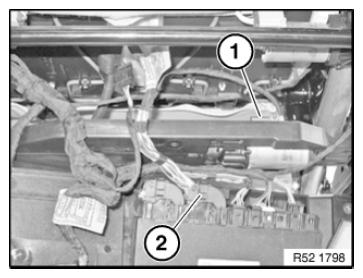

Fig 2: Identifying Drive Plug Connection And Control Unit Plug Connection

G08509213

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip pressure distributor (1) in marked area.

Installation note:

Replace faulty clips.

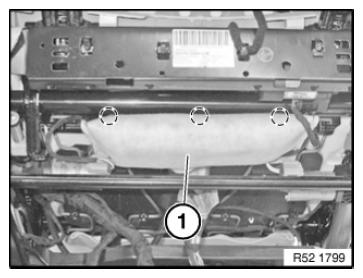

Fig 3: Identifying Pressure Distributor

G08509214

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip pneumatic pockets (1) with supports on left and right from flex mat.

Feed pneumatic pockets (1) through flex mat towards bottom.

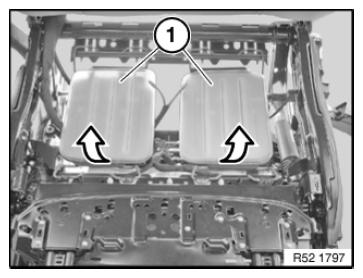

Fig 4: Identifying Pneumatic Pockets

G08509215

Courtesy of BMW OF NORTH AMERICA, INC.

Open quick connector (1).

Feed out hose through fleece mat and backrest frame.

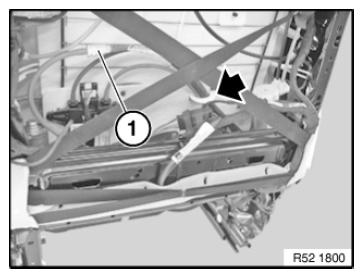

Fig 5: Identifying Quick Connector

G08509216

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
