16 11 060 Removing and installing or replacing fuel filler pipe: Replacement

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten hose clip (1).

Installation:

Check hose clamp, replace if necessary.

Tightening torque 16 12 1AZ .

Detach filler hose (2) from fuel filler pipe (3).

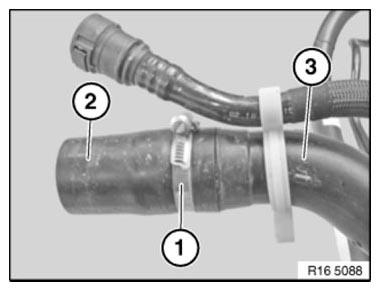

Fig 1: Identifying Fuel Filler Pipe, Filler Hose And Hose Clip

Courtesy of BMW OF NORTH AMERICA, INC.
