16 11 060 Removing and installing or replacing fuel filler pipe: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Recycling:

Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.

Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

IMPORTANT: Ensure adequate ventilation in the place of work!
Avoid skin contact (wear gloves)!
Before starting the engine for the first time:

Fill fuel tank with at least 5 liters of fuel.
Check ground connection at fuel filler neck to body for continuity. If necessary, clean contact surface between body and fuel filler pipe screw connection.

Necessary preliminary tasks:

Draw off FUEL from fuel tank
Remove REAR RIGHT WHEEL ARCH TRIM

Unhook retaining strap (1) from tank flap.

Open cap and set to one side.

Fig 1: Identifying Tank Flap Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Release plastic nut (1).

Installation:

Check plastic nut (1), replace if necessary.

Tightening torque 16 12 2AZ .

Unclip line holder (2).

Release hexagon nut (3).

Installation:

Tightening torque 16 12 2AZ .

Release quick-release coupling (4).

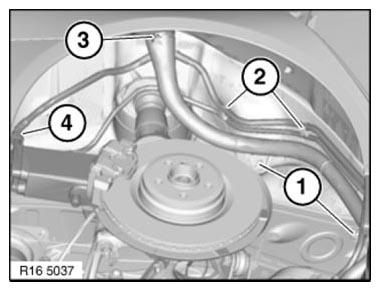

Fig 2: Identifying Quick Release Coupling, Line Holder And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip line (1).

Installation:

Make sure lines (1) and (2) are correctly seated in holder.

Fig 3: Identifying Fuel Filler Lines

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: There may be residual amounts of fuel in the tank!
Catch escaping fuel in a suitable container.

Unfasten hose clip (1).

Installation:

Check hose clamp, replace if necessary.

Tightening torque 16 12 1AZ .

Release quick-release coupling (2).

Remove fuel filler pipe.

Fig 4: Identifying Fuel Tank Hose Clip And Quick-Release Coupling

Courtesy of BMW OF NORTH AMERICA, INC.
