16 14 500 Removing and installing or replacing control unit for electric fuel pump: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE
(ESD protection).
Necessary preliminary tasks:
- Remove STORAGE COMPARTMENT in luggage compartment

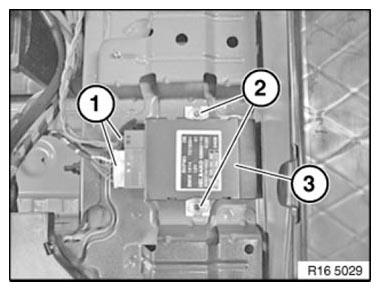

Disconnect plug connection (1).
Unfasten screws (2).
Remove control unit (3).
Installation:
Tightening torque 16 14 1AZ .
