16 12 010 Removing and installing/replacing carbon canister (US version)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear right WHEEL ARCH COVER

Disconnect plug connection (1).

Unlock quick-release fasteners (2) and disconnect vent lines.

Release screws (3) and swing out carbon canister (4).

Installation:

Tightening torque 16 13 1AZ .

The following components must be modified when the carbon canister is replaced:

DUST FILTER
DIAGNOSIS MODULE

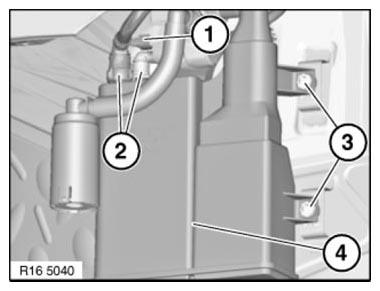

Fig 1: Identifying Carbon Canister, Quick-Release Fasteners, Plug Connection And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
