16 13 522 Removing and installing/replacing temperature sensor for Natural Vacuum Leak Detection (NVLD)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Only unclip seat bench (1) as shown on the left and right and fold up in direction of arrow.

Secure seat bench on front seat (2).

Fig 1: Folding Up Seat Bench

Courtesy of BMW OF NORTH AMERICA, INC.

Fold both floor trim panels (1) to the side.

Unscrew nuts (2).

Remove cover for service opening (3).

Fig 2: Identifying Floor Trim Panels, Nuts And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Carefully press tab (2) in direction of arrow.

Feed out temperature sensor (3) towards top.

Installation note:

Make sure latch mechanism of temperature sensor on flange cover is correct.

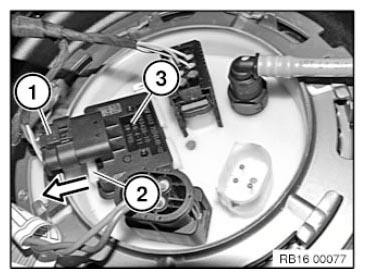

Fig 3: Pressing Feed Out Temperature Sensor Tab

Courtesy of BMW OF NORTH AMERICA, INC.
