67 65 010 Removing and installing or replacing drive unit for roller sun blind

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR WINDOW ROLLER BLIND

Release screws (1).

Remove drive linkage (2).

Installation:

Drive linkage (2) can only be installed in one position.

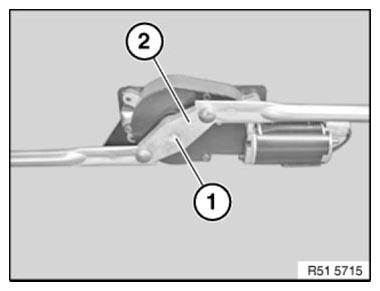

Fig 1: Identifying Drive Linkage And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove drive.

Installation:

Ensure correct cable routing.

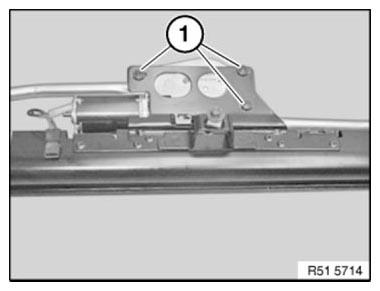

Fig 2: Identifying Drive Screws

Courtesy of BMW OF NORTH AMERICA, INC.
