51 13 282 Replacing trim strip on roof frame at left or right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM STRIP FROM ROOF FRAME

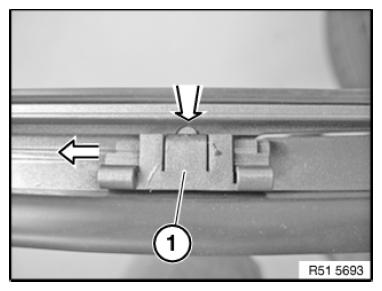

Unlock plastic mount (1) and simultaneously slide to one side.

Fig 1: Removing Plastic Mount

Courtesy of BMW OF NORTH AMERICA, INC.

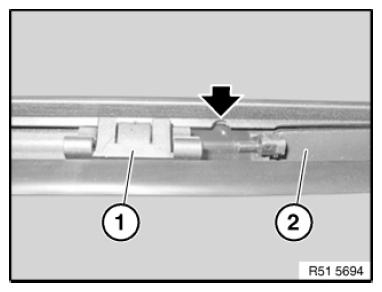

Slide plastic mount (1) sideways out of trim strip.

Remove cover (2).

Installation:

Make sure cover is correctly seated in plastic mount.

Make sure plastic mounts are correctly engaged.

Fig 2: Identifying Plastic Mount And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

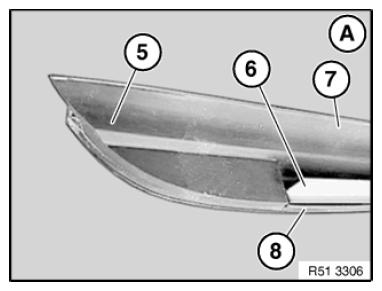

All retainers must be removed in order for seal (5) to be removed.

Glue molded part of seal (5) to trim strip (6) with Loctite 454 (sourcing reference: BMW Parts Service).

Coat rest of sealing channel of seal (7) with ANTISEIZE AGENT .

Fit seal (7) and press into end position with special tool 00 9 321 (fishbone).

Fit seal (8) without antiseize agent in compressed state.

Fig 3: Identifying Trim Strip And Seals

Courtesy of BMW OF NORTH AMERICA, INC.

A Direction of travel, front

Installation:

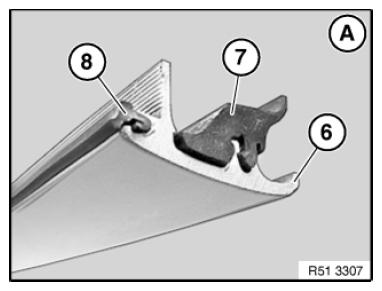

New seals (7 and 8) are longer than trim strip (6).

After installation, compress seals (7 and 8) slightly.

Cut seals (7 and 8) to length at ends to trim strip (6).

A Direction of travel, front

Fig 4: Identifying Trim Strip And Seals

Courtesy of BMW OF NORTH AMERICA, INC.
