Version with night vision

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

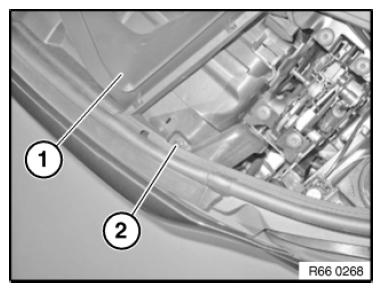

Fold cover (1) in seal mounting upwards as pictured.

Release camera fixing screw (2) and remove.

Fig 1: Identifying Cover And Camera Fixing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

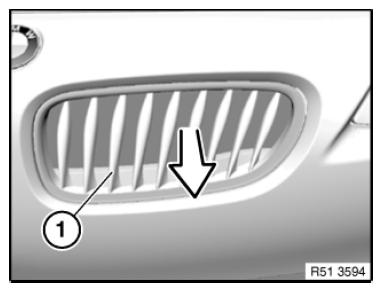

Press middle front radiator grille (1) upwards and pull in direction of arrow towards front.

Fig 2: Removing Front Radiator Grille

Courtesy of BMW OF NORTH AMERICA, INC.

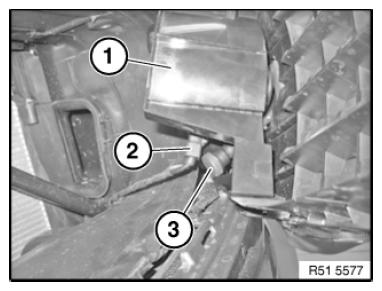

Release plug connection (2) and high-pressure nozzle line (3) on night vision camera (1).

Fig 1: Identifying Plug Connection, High-Pressure Nozzle Line And Night Vision Camera

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All catches and guides on middle front grille must not be damaged.

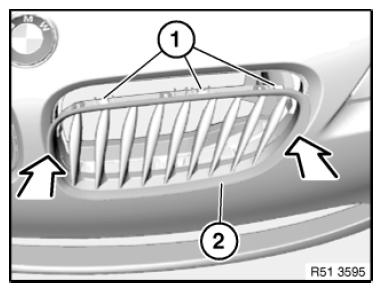

Press on chrome ring to push front radiator grille (2) into bumper trim.

Fixtures (1) must engage correctly.

Fig 2: Pushing Front Radiator Grille Into Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove NIGHT VISION CAMERA .
