3.0 Applying the adhesive

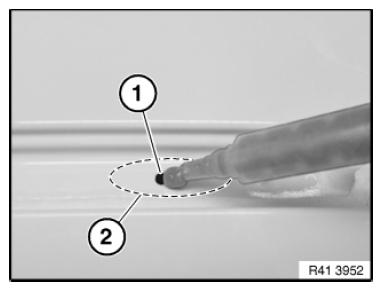

• Fill the hole (1) created by the torn-off T-pin with adhesive and spread over a length of approx. 4 cm (2) in the roof channel.
  IMPORTANT: The hole must be completely filled or sealed with adhesive!
  Fig 1: Filling Roof Channel Hole Using Adhesive

  Courtesy of BMW OF NORTH AMERICA, INC.

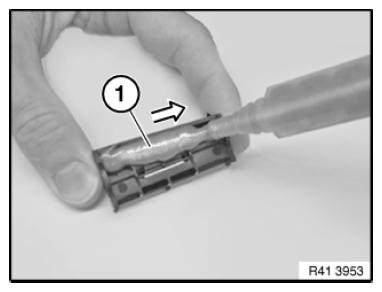

Apply adhesive bead (1) to the underside of the clip.

In so doing, fill channel of clip with adhesive.

Fig 2: Applying Adhesive Bead To Underside Of Clip

Courtesy of BMW OF NORTH AMERICA, INC.

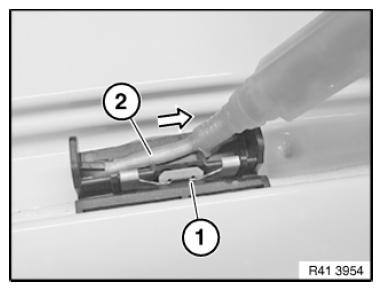

Move clip (1) into position and secure by hand.

If the adhesive is not already emerging evenly through the channel, apply additional adhesive from above.

Adhesive bead (2) must be below the clip height.

Fig 3: Applying Adhesive Bead In Clip

Courtesy of BMW OF NORTH AMERICA, INC.

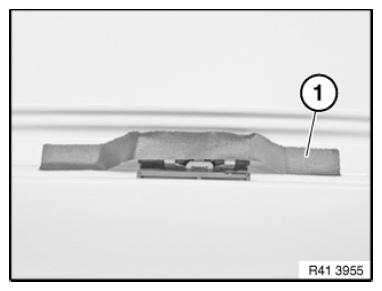

Secure clip with adhesive tape (1), approx. 150 mm long.

Apply adhesive tape in direction of travel.

Fig 4: Identifying Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.
