51 42... Replacing speaker trim on rear left or right door trim panel

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR MID-RANGE SPEAKER

Open plastic weld joints at marked points. Unlock catches (1).

Remove speaker frame (2).

Fig 1: Identifying Catches And Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install new loudspeaker finisher (2).

Catches (1) must be correctly seated in corresponding guides.

Secure retainers (3) as pictured to all marked plastic guides.

Speaker trim (2) must be secured without play on door trim panel.

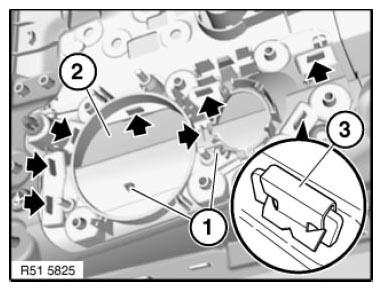

Fig 2: Identifying Catches, Speaker Trim And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
