51 42... Punching contour for seat memory switch into rear door trim panel

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

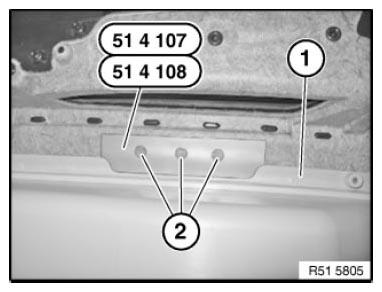

Position special tool 51 4 107 or 51 4 108 on the recess in the door trim panel storage compartment (1).

Mark cutouts (2).

Fig 1: Positioning Special Tool (51 4 107) Or (51 4 108) On Door Trim Panel Storage Compartment

G08508421

Courtesy of BMW OF NORTH AMERICA, INC.

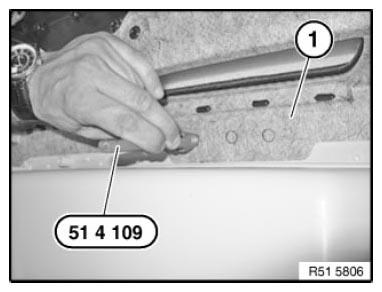

Use special tool 51 4 109 to punch holes on the previously marked points in the door trim panel (1).

Fig 2: Punching Marked Points In Door Trim Panel Using Special Tool (51 4 109)

G08508422

Courtesy of BMW OF NORTH AMERICA, INC.

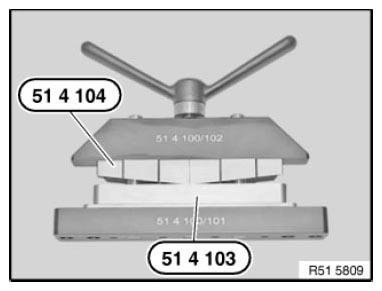

IMPORTANT: For punching work on F01/F02, special tools 51 4 103 and 51 4 104 must be used as the cutting equipment.

Fig 3: Identifying Special Tools (51 4 104) And (51 4 103)

G08508423

Courtesy of BMW OF NORTH AMERICA, INC.

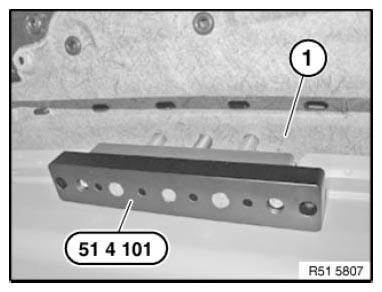

51 4 101 Slide special tool through holes stamped into door trim panel (1).

NOTE: Guide pins of punching tool are coded. Distortion is thus not possible.

Fig 4: Sliding Special Tool (51 4 101) Into Door Trim Panel

G08508424

Courtesy of BMW OF NORTH AMERICA, INC.

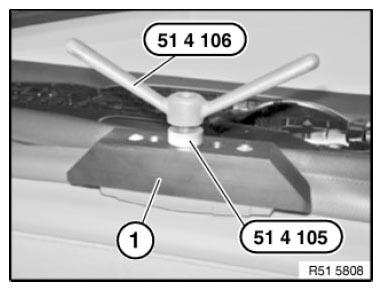

51 4 105 Mount special tools and on punching tool 51 4 106 (1).

Compress punching tool (1) via spindle.

Fig 5: Compressing Punching Tool

G08508425

Courtesy of BMW OF NORTH AMERICA, INC.

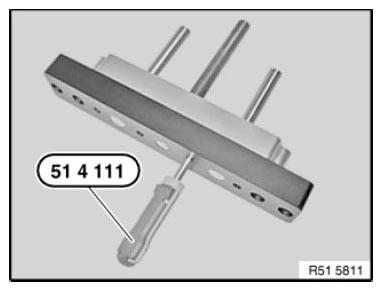

51 4 111 Press punching remnants with special tool from rear out of punching tool.

NOTE: This work step is necessary to prevent the cutting surfaces from being damaged during a renewed punching operation.

Fig 6: Pressing Punching With Special Tool (51 4 111)

G08508426

Courtesy of BMW OF NORTH AMERICA, INC.
