51 21... Removing weather strip with special tool 00 9 324 at front or rear

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Open side window completely.

Front door:

Insert special tool 00 9 324 at front (at A-pillar) in window cavity (1) (TOP label pointing upwards).

Rear door:

Insert special tool 00 9 324 at rear (at C-pillar) in window cavity (2) (TOP label pointing upwards).

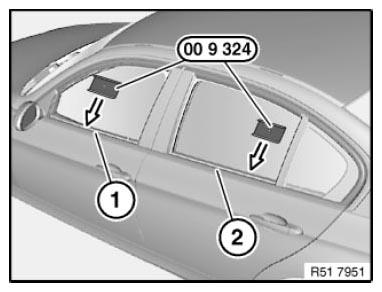

Fig 1: Inserting Special Tool (00 9 324) At Front And Rear Window Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, graphic shows inner door panel and side window removed.

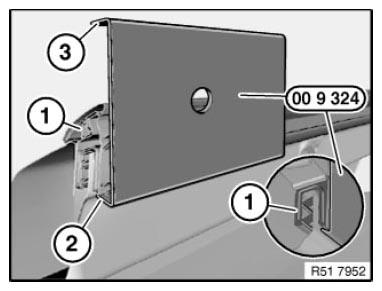

Special tool 00 9 324 must be correctly guided under weather strip (1).

2 Short leg, bottom

3 Long leg, top (TOP)

Fig 2: Identifying Special Tool (00 9 324) Under Weather Strip With Short And Long Legs

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Start at the front or rear, depending on the model.

IMPORTANT: Risk of damage!
Raise weather strip (3) no more than 5 mm in each levering operation, otherwise the strip will be bent.

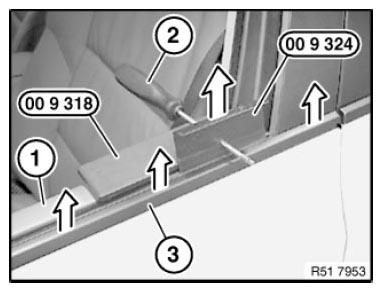

Fig 3: Raising Weather Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 00 9 318 on door trim panel (1).

Slide suitable tool (2) through hole of special tool 00 9 324 and in this way lever weather strip (3) in an upward direction by max. 5 mm.

Guide special tools 00 9 324 and 00 9 318 forward and backward step by step until weather strip (3) is fully removed.
