51 12.. Overview of rear bumper

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

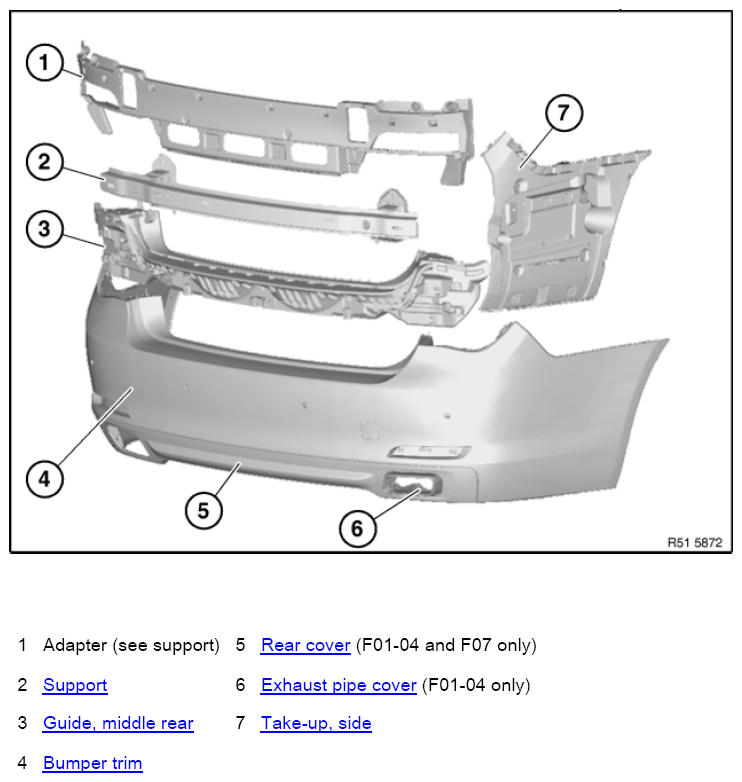

Fig 1: Identifying Rear Bumper Overview
G08507963Courtesy of BMW OF NORTH AMERICA, INC.
