51 12 828 Removing and installing/replacing guide for rear left or right bumper

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Unfasten screws (1 and 3).

Replace sheet nuts behind if necessary.

Unscrew nuts (2).

Remove guide (4).

Tightening torque 51 12 3AZ .

If necessary, remove TELEPHONE AERIAL .

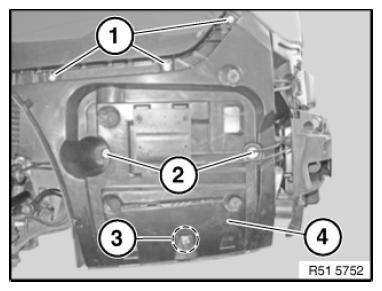

Fig 1: Identifying Guide, Nuts And Screws Of Bumper

Courtesy of BMW OF NORTH AMERICA, INC.
