51 12 825 Removing and installing/replacing guide for rear center bumper: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM
If necessary, remove SENSOR FOR LANE CHANGE WARNING

NOTE: Operation is described on the left side.
The operation on the right side is the same as for the left side.

Release screw (1).

Slacken nut (2).

Tightening torque 51 12 2AZ .

Installation note:

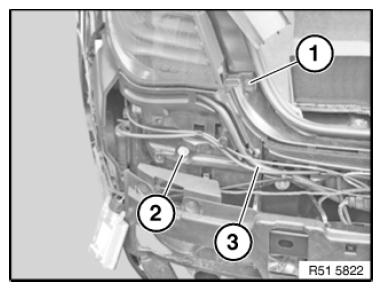

Fig 1: Identifying Screw And Nut Of Rear Center Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Note line routing.

Unscrew nuts (1).

Tightening torque 51 12 2AZ .

If necessary, remove plug connection on bumper aerial for comfort access system.

Feed out guide (2) and remove.

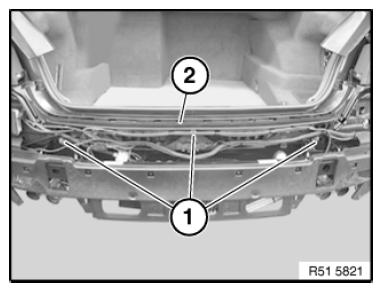

Fig 2: Identifying Guide And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
