51 12 432 Replacing protective strip for bumper, rear middle

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

Removing:

Heat protective strip (1) with a hot air blower and detach with special tool 00 9 327 from bumper panel (2).

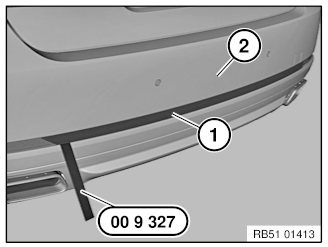

Fig 1: Identifying Bumper Panel, Protective Strip, And Special Tool 00 9 327

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean bonding surface.

Pull liner* off adhesive tape (1).

Position protective strip over guide (2) in area (3) and stick on.

*Liner is the protective film on adhesive tape.

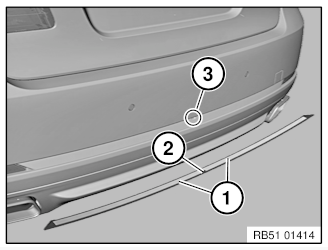

Fig 2: Installing Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.
