51 12 050 Removing and installing/replacing support for rear bumper panel: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

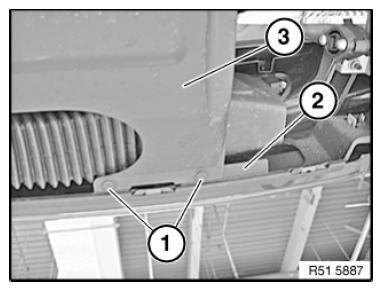

Lever out expander rivet (1) on adapter (2) and cover (3).

NOTE: Cover can vary.

The trailer tow hitch optional equipment is pictured.

Fig 1: Identifying Rivet, Adapter And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

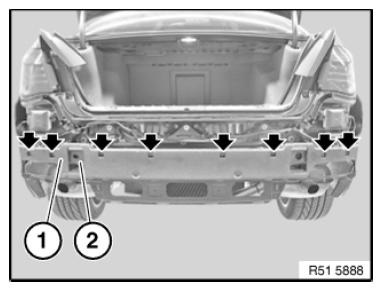

Unclip adapter (1) on bumper panel (2) at marked points.

If necessary, unlock and disconnect plug connections on control unit for RDC or Smart Opener.

Fig 2: Identifying Adapter And Bumper Trim Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Operation is described on the left side. Right side identical.

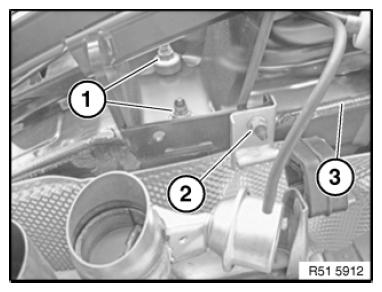

Unscrew nuts (1).

Tightening torque 51 12 1AZ .

Slacken nut (2).

Remove carrier (3).

Fig 3: Identifying Rear Bumper Trim And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
