51 46 001 Removing and installing/replacing trim panel for storage shelf: Replacement

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Remove SPEAKERS (SPEAKER CARRIERS) on left and right.

Version with Top Tether eyelets only:

Lever out all caps (1) for Top Tether eyelets with plastic wedge.

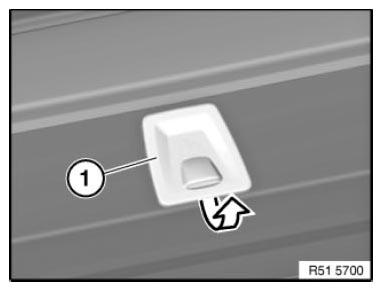

Fig 1: Removing Top Tether Eyelets Caps

G08508504

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs must not be damaged.

If necessary, replace cap.

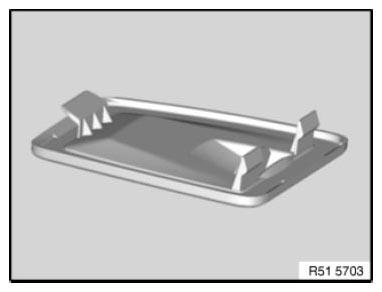

Fig 2: Identifying Retaining Lugs

G08508505

Courtesy of BMW OF NORTH AMERICA, INC.

Press retaining lugs and remove frame for Top Tether eyelet trim.

Installation note:

Make sure retaining lugs are correctly seated in aperture.

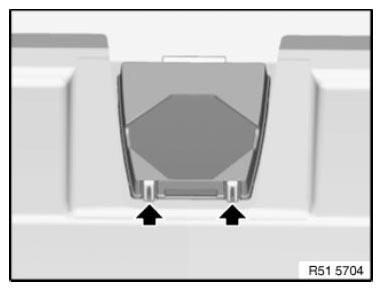

Fig 3: Locating Retaining Lugs

G08508506

Courtesy of BMW OF NORTH AMERICA, INC.

Version with decorative strip only:

Release screws (1).

Remove decorative strip.

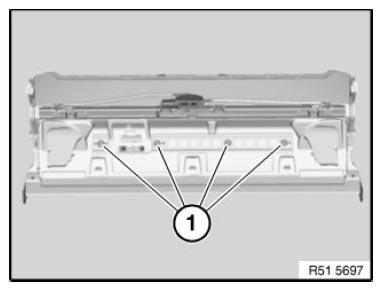

Fig 4: Identifying Decorative Strip Screws

G08508507

Courtesy of BMW OF NORTH AMERICA, INC.

Work on apertures in trim panel, depending on equipment specification:

IMPORTANT: Only work on clean surfaces. Risk of dirtying storage shelf.
Storage shelf must lie flat to punch out the holes.
Make sure cut edges are clean.
Fabric cover must not pull any threads.

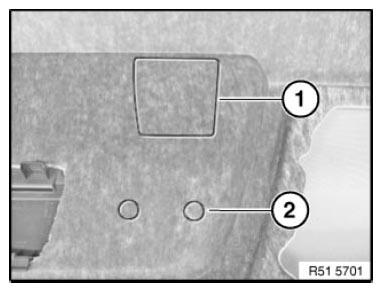

Fig 5: Identifying Decorative Strip Apertures And Apertures

G08508508

Courtesy of BMW OF NORTH AMERICA, INC.

Pay attention to molding on storage shelf:

Cut out apertures for Top Tether eyelet or belt feed with a Fein cutter (160 A) or with a bodywork saw with blade for curved cuts (see BMW Parts Department).
Punch out decorative strip apertures.
