51 16 355 Removing and installing/replacing driver's side hinged compartment: Replacement

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

In F01/02/03 only:

Modify clamps (1).

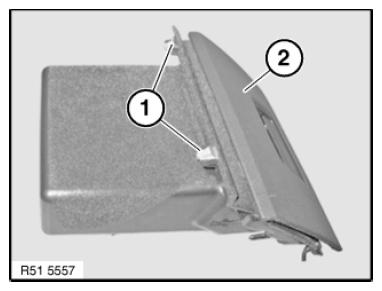

Fig 1: Identifying Retainers And Clamps
Courtesy of BMW OF NORTH AMERICA, INC.

In F01/02/03 only:

Release screws (1) and fit handle on fold-down compartment.

Tightening torque 51 45 7AZ .

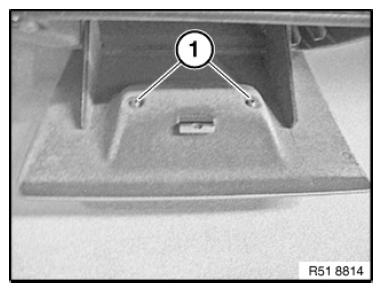

Fig 2: Identifying Fold-Down Compartment Screws

Courtesy of BMW OF NORTH AMERICA, INC.
