51 16 274 Removing and installing/replacing rear center console

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Remove mat insert (1).

Fig 1: Identifying Mat Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 51 16 12AZ .

Unfasten screws (2).

Tightening torque 51 16 12AZ .

Remove center console.

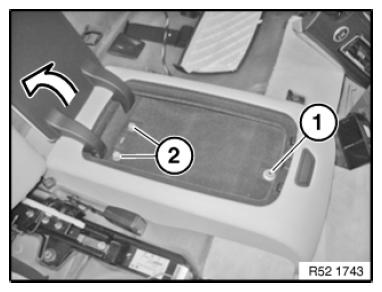

Fig 2: Removing Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.
