51 16 229 Removing and installing/replacing lower rear center console trim

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRE CONSOLE TRIM

Unclip lower rear center console (1) first and top then at bottom from center console trim (2).

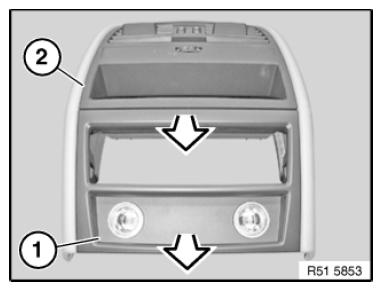

Fig 1: Removing Lower Rear Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Correctly clip lower rear center console (1) at all four points into center console trim (2).

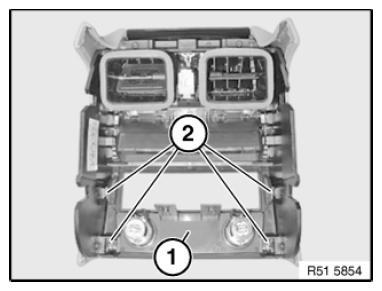

Fig 2: Identifying Lower Rear Centre Console And Centre Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.
