51 16 063 Removing and installing/replacing inside mirror: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Rear-view mirrors with modified mirror base are installed starting with series launch F20 and all following new productions.

Observe NEW REPAIR INSTRUCTIONS !

Further introduction dates:

F01, F02, F03, F06, F07, F10, F11, F12, F13, F18	07/2012
F25	03/2012

Distinguishing feature:

old version, small mirror base (1) with round base plate on windscreen
new version, large mirror base (2) with square base plate on windscreen

NOTE: Dismantling of mirror cap is identical on both versions.

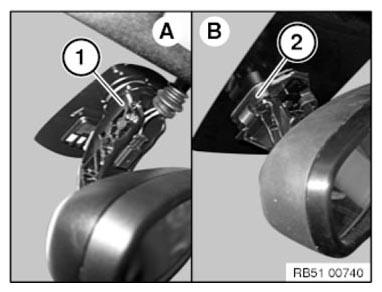

Fig 1: Identifying Small And Large Mirror Base

Courtesy of BMW OF NORTH AMERICA, INC.

Version with mirror arm end cap:

(old version)

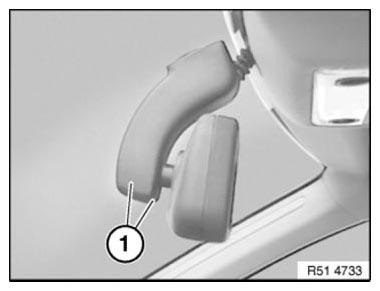

Fig 2: Identifying Mirror Arm End Caps (Old Version)

Courtesy of BMW OF NORTH AMERICA, INC.

Version with mirror arm end cap:

(NEW VERSION )

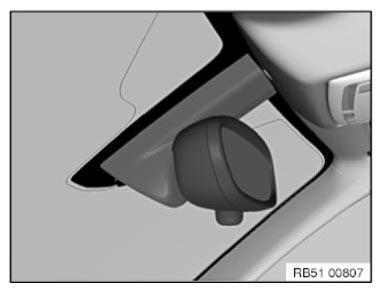

Fig 3: Identifying Mirror Arm End Caps (New Version)

Courtesy of BMW OF NORTH AMERICA, INC.

Version with rain sensor:

(OLD VERSION )

(NEW VERSION )

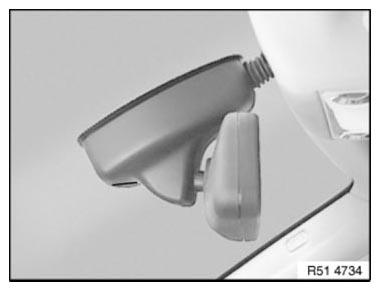

Fig 4: Identifying Rain Sensor (Old Version)

Courtesy of BMW OF NORTH AMERICA, INC.

new version

Version with high-beam assistant:

(OLD VERSION )

(NEW VERSION )

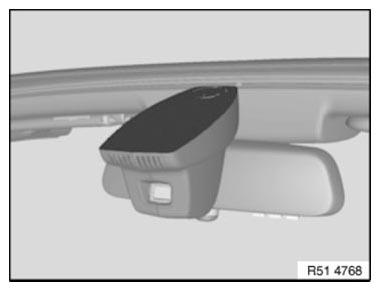

Fig 5: Identifying High-Beam Assistant (Old Version)

Courtesy of BMW OF NORTH AMERICA, INC.
