41 63 003 Replacing cover bowl: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FLAP FOR FUEL FILLER NECK
NOTE:
Carry over schematic representation to the relevant vehicle type.
IMPORTANT:
Deformation of the sheet metal flanges in the side panel and the wheel arch results in permanent vehicle leakage. Carry out removal/installation with great care.
Following new body parts are required:
- (1) Filler bowl

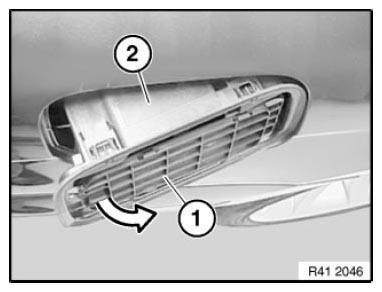

Release rubber collar (1) from cover bowl (2) by pressing inward.
NOTE:
Rubber collar (1) remains attached to vehicle.

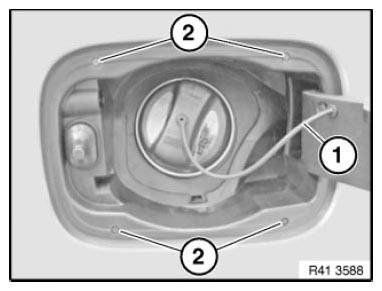

Press retaining strap (1) inwards and remove.

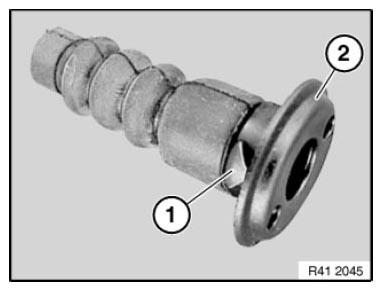

Remove grommets (2).
NOTE:
Grommets (2) are replaced with new cover bowl.

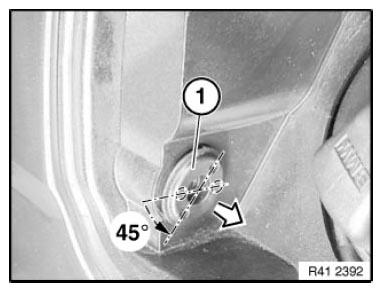

Turn sleeve (1) through approx. 45° and pull out in direction of arrow.
Installation:

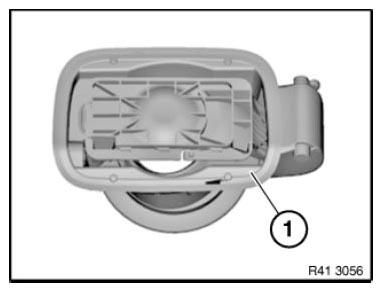

Locks (1) on left/right of cover (2) must not be damaged.
NOTE:
For purposes of clarity, picture shows cover bowl removed.

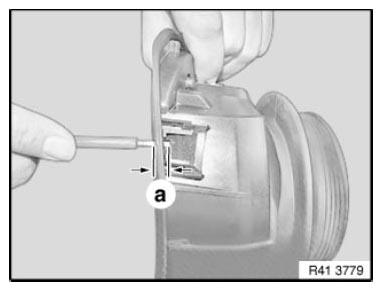

Insert screwdriver to specified measurement a and unlock cover bowl catch.
Measurement a = approx. 10 mm
Keep cover bowl tensioned with pliers (1).
Unlock catches individually with screwdriver (2).
Unlock catches in following order:
- Top left
- Bottom left
- Top right
- Bottom right
Move screwdriver in opposite direction at both lower catches.

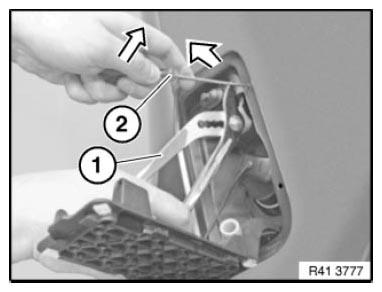

Close hinge arm (1).
IMPORTANT:
Do not damage sheet metal flange of side panel.
Carefully twist out cover bowl (2) at first at rear in direction of arrow from side panel and remove.
