51 45... Removing and installing/replacing lower instrument panel cover: Replacement

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Modify clamps.

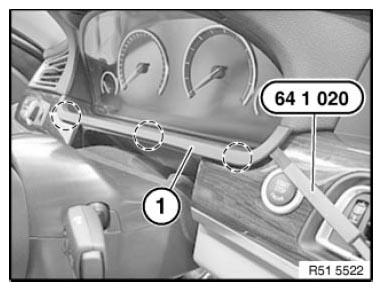

Fig 1: Removing Cover With Special Tool (64 1 020)
G08508479Courtesy of BMW OF NORTH AMERICA, INC.
