51 45 370 Removing and installing (replacing) left decorative strip on dashboard: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

NOTE: Graphic shows F01.

Carefully remove decorative strip (1)

00 9 317 with special tool and disconnect plug connection behind.

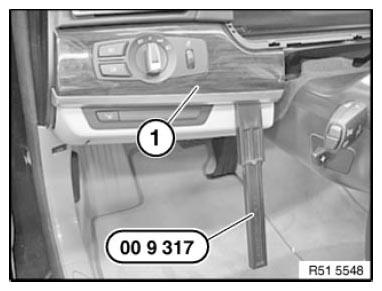

Fig 1: Removing Decorative Strip With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure clamps (1) are correctly seated on decorative strip (2).

Replace defective clamps.
