51 45 195 Removing and installing/replacing trim for lower right instrument panel (ECE only): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (3) and remove carpet cover (4) towards front.

Release screws (1).

Detach trim panel (2) and drop slightly.

Disconnect plug connections at the back.

Remove trim (2) in direction of arrow.

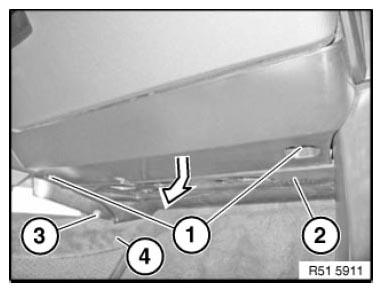

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, replace retainers (1).
