51 45 184 Removing and installing/replacing trim panel for pedal assembly (ECE only)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

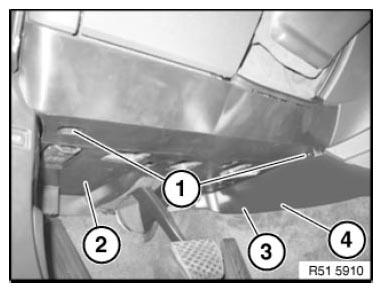

Release screws (1).
Release screw (3).
Fold back console trim (4).
Lower panel (2) slightly and disconnect plug connections behind.
Remove trim (2).
Replacement:
- Remove FOOTWELL LIGHT
- Remove SPEAKER FOR HANDS-FREE SYSTEM
