51 23... Removing/installing ball sockets with clip: Disassembly/assembly
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

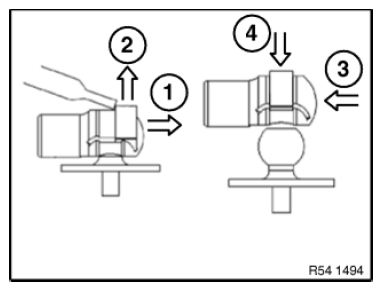

- Push on clamp in direction of groove with screwdriver
- Lift off ball socket from ball pin
- Slide clamp back
- Fit ball socket on ball stud and snap into place with force
Installation note:
Replace overstretched clips.
Pack grease into two opposite positions in socket. The grease spreads after installation on the ball pin all round in the ball socket.
