51 23 211 Removing and installing/replacing pull cable for hood/bonnet locks at front

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TOP REAR CONNECTION .

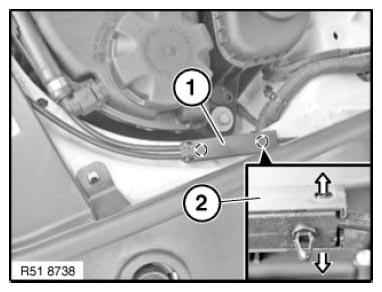

Unclip clutch housing Bowden cable (1) at marked points.

Installation note:

Clips must not be damaged.

To open up clutch housing cover, lever up cover (2) in direction of arrow.

Fig 1: Removing Clutch Housing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

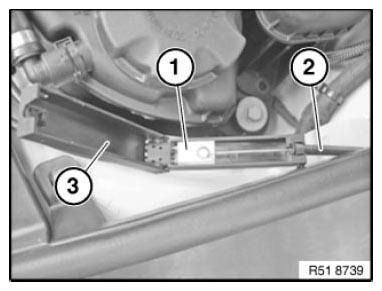

Feed rear Bowden cable (2) out of sliding carriage (1) and clutch housing (3).

Fig 2: Identifying Clutch Housing Cover, Rear Bowden Cable And Clutch Housing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

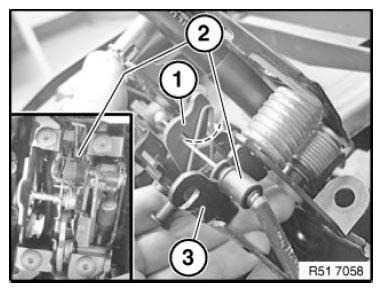

Pull back retaining spring from release lever (1).

Feed Bowden cable (2) out of release lever (1) and catch carrier (3).

Repeat procedure on second bonnet lock.

Unthread cable for bonnet locks and remove.

Fig 3: Identifying Bowden Cable, Release Lever And Catch Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
