51 23 201 Removing and installing/replacing release mechanism for retaining hook on engine compartment lid

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Screw connection only:

Release screws (1) on engine compartment lid (2).

Unhook Bowden cables (4) from release element (3).

Remove release element (3).

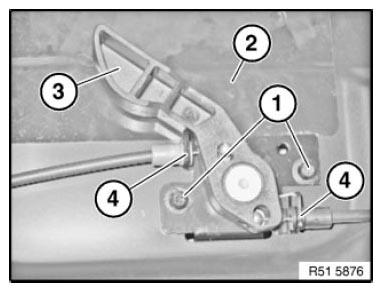

Fig 1: Identifying Bowden Cable Of Hood/Bonnet Release Mechanism And Screws On Hood/Bonnet

Courtesy of BMW OF NORTH AMERICA, INC.

Riveting:

Drill off blind rivets (1).

Unhook Bowden cables (2) from release element (3).

Remove release element (3).

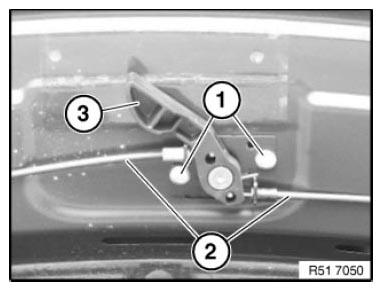

Fig 2: Identifying Blind Rivets, Bowden Cables And Release Element

Courtesy of BMW OF NORTH AMERICA, INC.
