51 23 110 Removing and installing/replacing left engine compartment lid catch (12-cyl. only): Replacement

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Engine compartment lid catch with microswitch:

Feed wiring harness (1) completely out of microswitch (2).

Raise retaining tab (3) of microswitch (2) and remove microswitch (2) in direction of arrow.

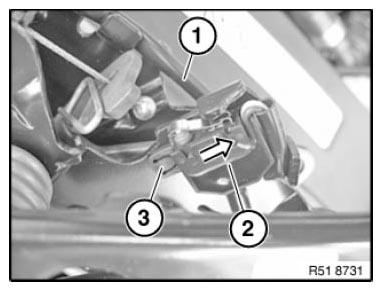

Fig 1: Removing Microswitch

Courtesy of BMW OF NORTH AMERICA, INC.
