51 23 110 Removing and installing/replacing left engine compartment lid catch (12-cyl. only): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR CONNECTION .

Release remaining screws (1) on engine compartment lid catch (2).

Tightening torque 51 23 2AZ .

Raise engine compartment lid catch (2).

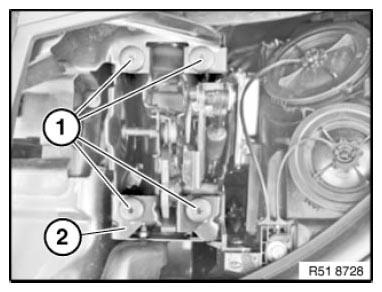

Fig 1: Identifying Engine Compartment Lid Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment lid catch with microswitch:

Detach plug connection (1) by twisting from catch carrier.

Unfasten plug connection (1) and disconnect.

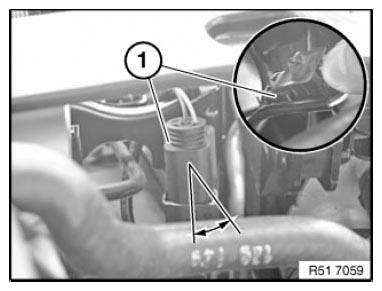

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Pull back retaining spring from release lever (1).

Feed Bowden cable (2) out of release lever (1) and catch carrier (3).

Remove engine compartment lid catch.

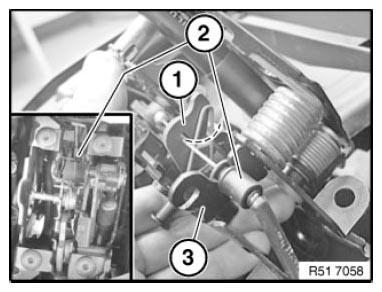

Fig 3: Identifying Bowden Cable, Release Lever And Catch Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
