51 23 110 Removing and installing/replacing engine compartment lid lock on left (up to 08/2008)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SIDE ENGINE COMPARTMENT LID SEAL MOUNTING in work area

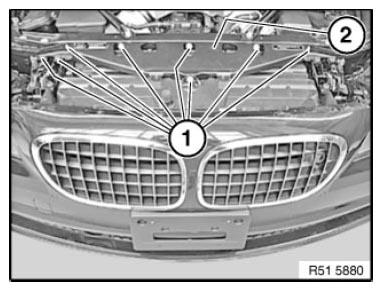

Slacken screws (1) on connection (2).

Tightening torque 51 61 4AZ .

NOTE: Component does not have to be removed.

Fig 1: Identifying Engine Compartment Lid Lock Screws And Connection

Courtesy of BMW OF NORTH AMERICA, INC.

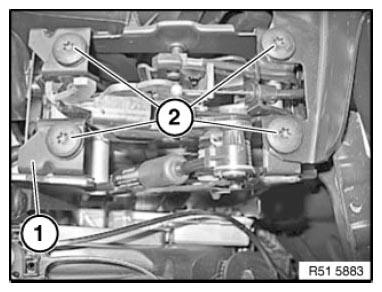

Release screws (2) on engine compartment lid lock (1).

Tightening torque 51 23 2AZ .

Fig 2: Identifying Engine Compartment Lid Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

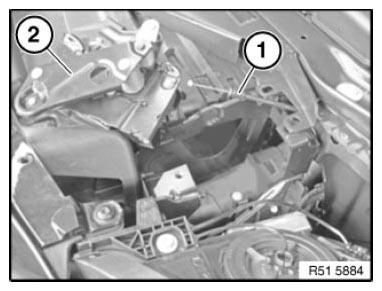

Disconnect Bowden cable (1).

Remove engine compartment lid lock (2) towards top.

Fig 3: Identifying Engine Compartment Lid Lock And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
