51 71... Removing and installing/replacing left or right tank cover

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Release all screws (2).

Tightening torque 51 75 1AZ .

Unscrew nut (3).

Feed out tank cover (1) towards rear above tension strut (4).

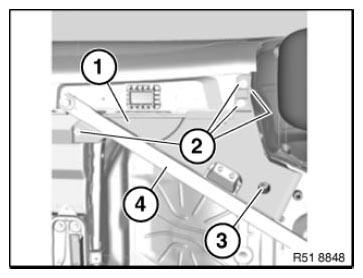

Fig 1: Identifying Tank Cover, Tension Strut, Nut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
