51 71... Installing and removing/replacing vehicle hoist mounting

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Insert special tool 51 3 330 between vehicle hoist mounting (1) and vehicle underbody (2) and remove.

IMPORTANT: Risk of corrosion!
Touch up paintwork damage.
Re-establish wax layer.

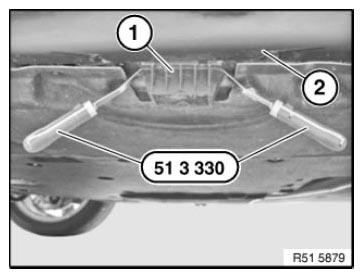

Fig 1: Inserting Special Tool (51 3 330) Between Vehicle Hoist Mounting And Vehicle Underbody

Courtesy of BMW OF NORTH AMERICA, INC.
