51 64 020 Removing and installing/replacing top rear connection (12-cyl. models): Replacement

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Tightening torque 51 61 4AZ .

Detach rear connection (2) from front connection (3).

Installation:

Guide lug secures rear connection (2) to front connection (3).

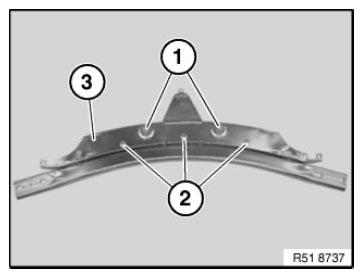

Fig 1: Identifying Screws, Rear And Front Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Only if replacing front connection (3):

Modify plug (1) and retaining clip (2).

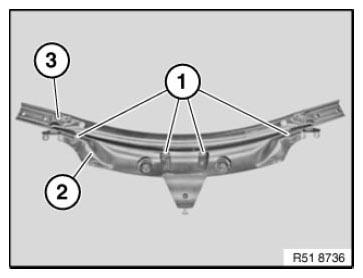

Fig 2: Identifying Plug, Retaining Clip And Front Connection

Courtesy of BMW OF NORTH AMERICA, INC.
