51 64 020 Removing and installing/replacing top rear connection (12-cyl. models): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard!
Only perform work after engine has cooled down.

IMPORTANT: Driving without the connection is not permitted. (risk of damage to the body).

Necessary preliminary tasks:

Remove SIDE ENGINE COMPARTMENT LID SEAL MOUNTING in work area

NOTE: Graphic shows the left side only. Apply mirror image of graphic to the right side.

Release screws for air duct (1) on left and right.

Tightening torque 13 71 7AZ .

Release screws on connection at rear (2) left and right.

Tightening torque 51 61 3AZ .

Release rear screws for engine compartment lid catch (3) on left and right.

Tightening torque 51 61 5AZ .

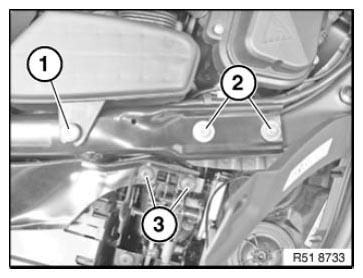

Fig 1: Identifying Engine Compartment Lid Catch And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Release screw connection for supports (2).

Tightening torque 51 61 6AZ .

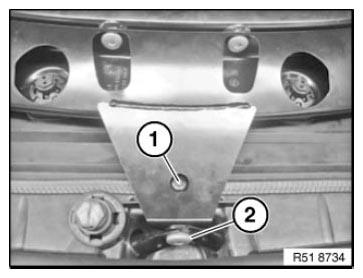

Fig 2: Identifying Screw Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Raise front/rear connection (1) and disengage Bowden cable (2) in marked area.

Remove front/rear connection (1).

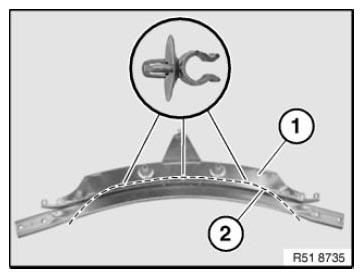

Fig 3: Identifying Front/Rear Connection And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
