51 32 420 Removing and installing/replacing trim on front door window frame, left or right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

If necessary, open the window glass
Remove FRONT DOOR TRIM

Carefully feed out the rubber window seal (1) in working area. When doing this pay attention to the connection to the inner window cavity (see mark in illustration).

Installation:

Coat rubber window seal (1) with water before fitting.

Unfasten screws (2).

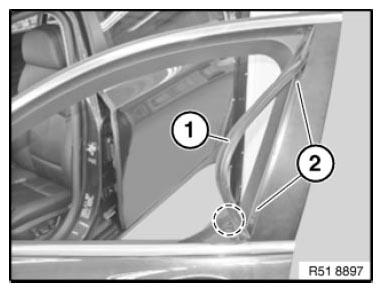

Fig 1: Identifying Rubber Window Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic is only an example.

Protect top frame trim against scratches.

Move cover (1) somewhat down and feed out above.

Lever out trim (1) to the rear and feed out somewhat to the outside.

Pull out the cover (1) upward over the frame cover.

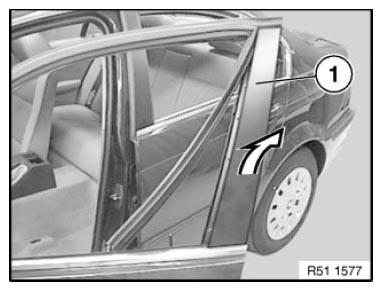

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged plastic nuts from the bolts (1).

Installation:

Check trim (1) for damage, replace if necessary.

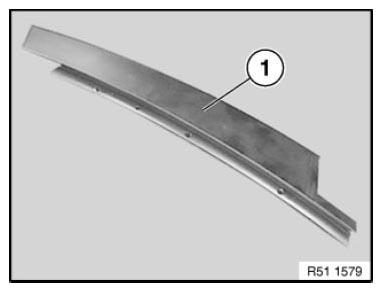

Fig 3: Identifying Trim

Courtesy of BMW OF NORTH AMERICA, INC.
