51 32 390 Removing and installing/replacing frame trim on front left or right side window frame

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open side window
REMOVE WINDOW CAVITY COVER STRIP ON OUTSIDE OF FRONT DOOR

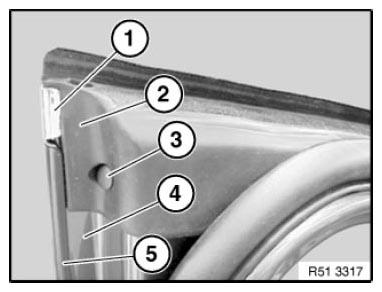

Lever out plastic rivet (3).

Lever seal (2) out of decorative strip (1).

Installation:

During installation, attach decorative strip (1) first at rear to door edge (4).

Decorative strip (1) must match trim (5).

Fig 1: Identifying Plastic Rivet, Seal, Decorative Strip And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out seal (1) from inside.

Fig 2: Removing Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

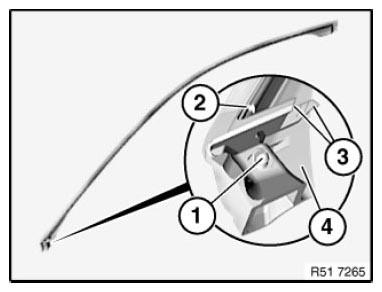

Following parts of decorative strip on window frame (4) must not be damaged or missing:

Plastic rivet
Rubber profile
Seal

Fig 3: Identifying Plastic Rivet, Rubber Profile, Seal And Window Frame
Courtesy of BMW OF NORTH AMERICA, INC.

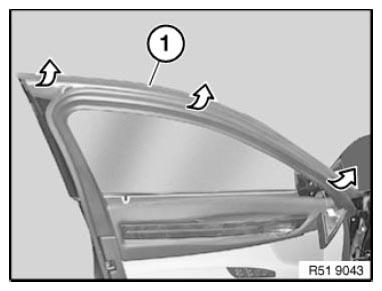

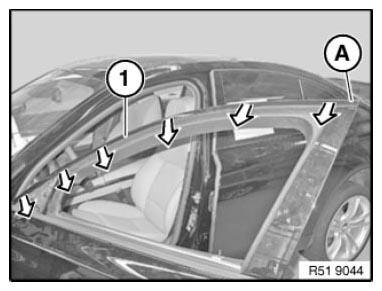

NOTE: Start pulling off the frame trim (1) at (A).

Detach decorative strip (1) in direction of arrow.

Fig 4: Disconnecting Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

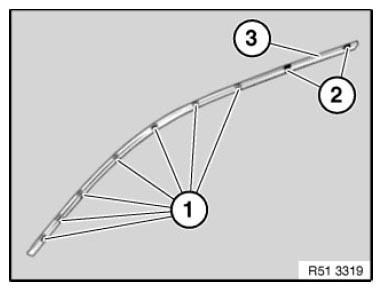

If necessary, replace faulty clips (1 and 2) on decorative strip (3).

Fig 5: Identifying Faulty Clips And Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.
