51 32 160 Removing and installing/replacing inner cover on left or right window frame

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM

Starting at front end and working toward the inside and down, pry out cover (1).

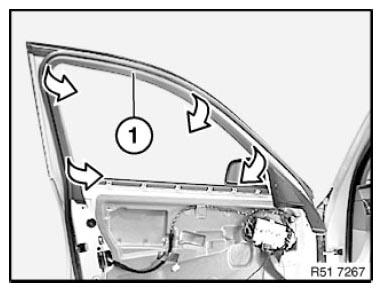

Fig 1: Prying Out Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Feed cover on window frame (2) neatly into the gap of the rubber window seal (1).
Make sure cover fits properly above door seal.

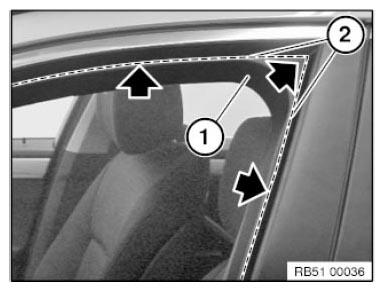

Fig 2: Identifying Cover On Window Frame And Gap Of Rubber Window Seal
Courtesy of BMW OF NORTH AMERICA, INC.
