51 48 001 Removing and installing/replacing insulation lining on engine hood/bonnet

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Example shown on F01: There may be differences in detail in the case of other vehicle types.

Release all expanding rivets/clips on damping material (1).

Remove damping material (1).

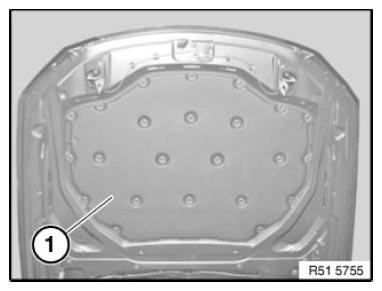

Fig 1: Identifying Damping Material

Courtesy of BMW OF NORTH AMERICA, INC.
