51 41... Replacing speaker cover on left or right front door trim panel

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT MID-RANGE SPEAKER .

Open plastic welded joints.

Unlock latch mechanisms (1).

Remove speaker cover (2).

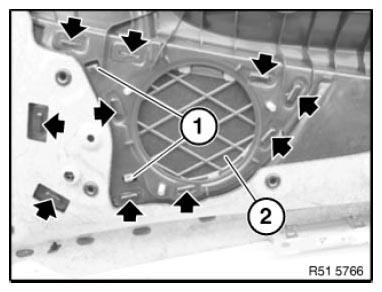

Fig 1: Identifying Latch Mechanisms And Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

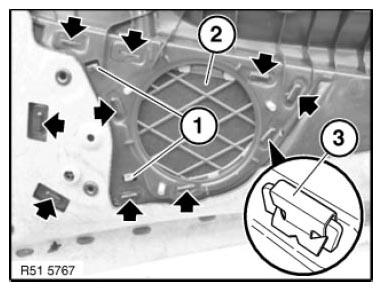

Fig 2: Identifying Latch Mechanisms, Clamps And Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install new speaker cover (2).

Latch mechanisms (1) must be correctly seated in corresponding guides.

Secure clamps (3) as pictured to all marked plastic guides.

Speaker cover (2) must be secured without play.
