51 41 000 Removing and installing (replacing) front left or right door trim panel: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DECORATIVE STRIP FROM DOOR TRIM PANEL .

Unclip trim on triangular mirror section (1) and disconnect plug connection behind.

Unfasten screws (2).

Tightening torque 51 41 1AZ .

Carefully lever out door trim panel (3)

00 9 317 with special tool.

Lift off door trim panel upwards.

NOTE: Start lever out at bottom.

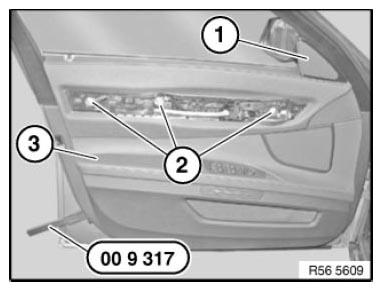

Fig 1: Removing Door Trim Panel With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) for release lever first at counter support (2) and then at door lock (3).

Disconnect all plug connections and remove door trim panel.

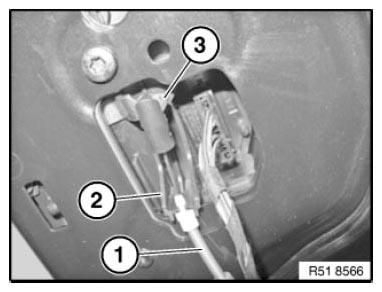

Fig 2: Identifying Bowden Cable, Counter Support And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace clips (1).

If necessary, replace clip (2) with foam insulation.

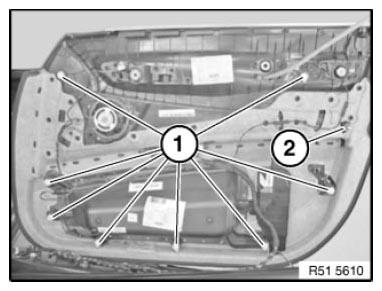

Fig 3: Identifying Door Panel Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

Open side window
Lock with ignition key
Check for ease-of-movement on locking knob linkage
If necessary, align linkage
