51 21 170 Removing and installing or replacing outer door handle from left or right front door

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Graphics used come from the F01.

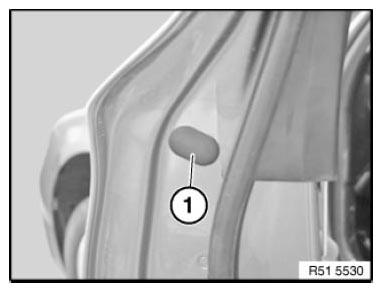

Lever out seal plugs (1).

Fig 1: Identifying Plug

Courtesy of BMW OF NORTH AMERICA, INC.

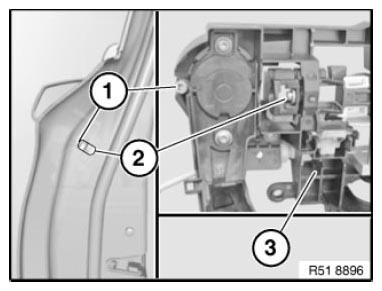

Release clamping bolt (2) from the support for the outer door handle (3).

Fig 2: Identifying Clamping Bolt And Outside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

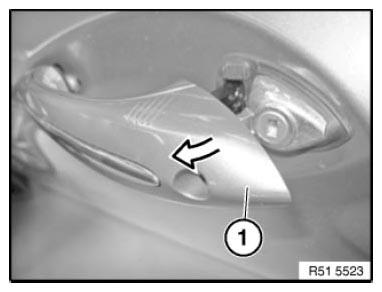

Feed out the rear outer door handle (1) in direction of arrow.

Swivel the outer door handle (1) further in direction of arrow and feed it out at front.

Fig 3: Removing Outside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

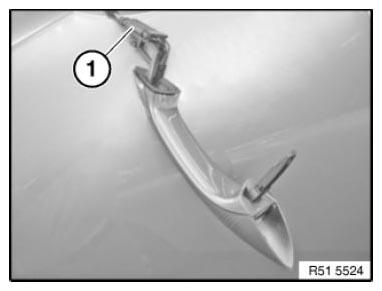

Unlock plug connections (1) and disconnect.

Fig 4: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
